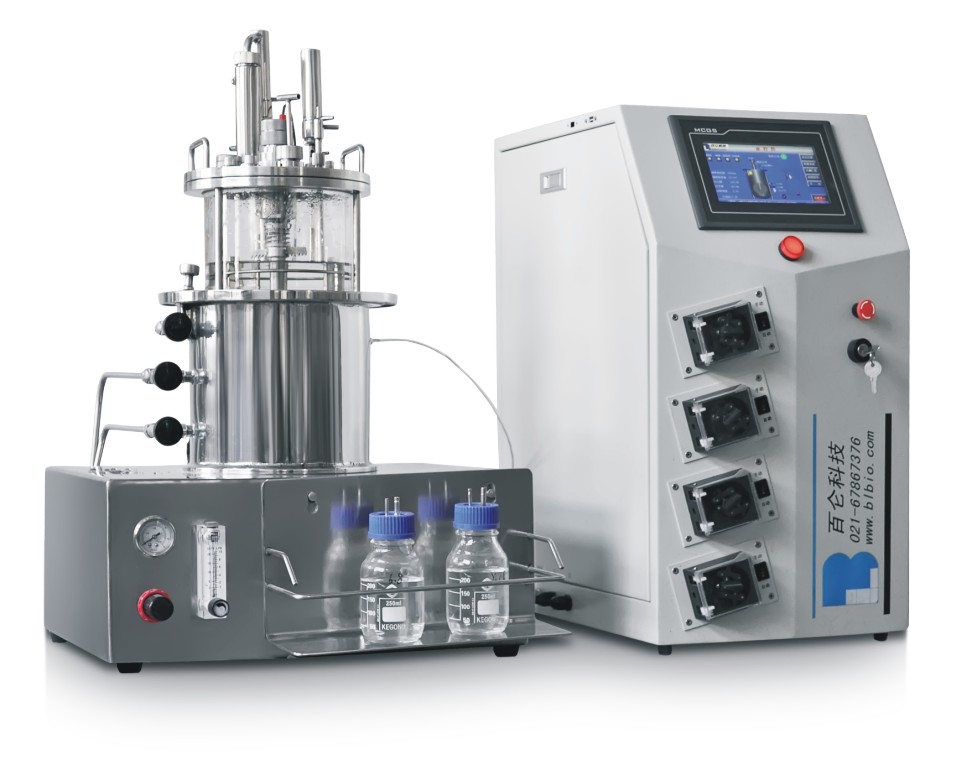

BLBIO-5GJA  Sterilized in situ Magnetic stirred glass fermenter (Desktop)

BLBIO-XGCA  / XGJA multifunctional glass fermentation system with color  touch-screen display of all measured values and control parameters,  which greatly facilitates the user's actions. In front of the control box installed four peristaltic pumps, can add acids, bases, defoamers, and medium to the fermentor. Fermentation  of various parameters such as, pH, DO, temperature and speed can be  monitored by the controller, all the data and control parameters can be  passed to the controller or computer. Compact structure, the various components can be integrated on the fermentation system. The upper driver using direct coupling mechanical stirring or lower  driving indirectly coupled magnetic mechanical stirring manner, the  structure is simple, smooth operation, automatic program situ  sterilization sterilization.

Nominal capacity: 1/3/5/7/10/15 l
Diameter height ratio: 1: 2-3; liquid filling factor: 70%
Tank: high temperature, acid, corrosion-resistant borosilicate glass tube and stainless steel 316L in combination,
Ventilation: rotameter display, adjust the gas flow according to process requirements
Fermentation pH control: intelligent PID control, Mettler PH electrode;
DO degree of fermentation control functions: intelligent PID control, Mettler DO electrode;
Temperature control: intelligent PID control, stainless steel jacket electric heating, water cooling
Feeding: complete feeding system (acids, alkalis, bubble enemy, training agents), can be time quantitative feeding;
Sterilization: Auto-situ sterilization procedures; inoculation: alcohol flame inoculation;


Technical parameters:
Stirring speed: Speed: 50 ~ 1000rpm Accuracy: ± 1rpm;
PH control: intelligent PID control, automatic fill acid / base; range: 2 ~ 12ph; control accuracy: ± 0.02ph,
DO control: Intelligent PID control, associated with the feeding speed; range: 0 to 100%, the control accuracy: ± 3%;
Temperature control: intelligent PID control; electric heating water  cooling; range: cooling water temperature + 5 ~ 60 ℃; Accuracy: ± 0.1 ℃;
Foam Control: electrode detection, peristaltic pump up defoamers, automatic control;
Ventilation: manual adjustment, meter display;

Tank pressure: manual adjustment, the gauge display; range: 0 ~ 0.20Map;
 BLBIO-A type, B, C-type, D-type control system Optional: Siemens  S7-200 series PLC control system + 7 "touch-screen display and  operation, you can use the USB data processing can be transferred data.


Add optional features items:
b  feeding tank weighing scales weighing W d e air flow automatically  controlled oxygen tank pressure bypass detection f g h online testing  redox potential A (b) alcohol content online testing and control I  exhaust O2, CO2 content of online testing A automatic sterilization function C tank automatic cleaning function U lid automatically upgrade function


Model Comments: BLBIO- XABC-D
X- tank total volume:
A- tank materials: -G: Glass / -S: stainless steel tank -V animal cell vaccine -C -M enzyme reactor tank
B- Transmission: -C: magnetic drive mechanical stirring / -J Direct  drive mechanical agitation / -Q -S solid flow stir stir -G provide light
C - add optional features -A automatic sterilization - inaction manual  manual situ sterilization sterilization -U -Y glass lid automatically  upgrade
D  - -A controller model for industrial control computer + Control Module -  inaction B controller, for our standard controller -C 10-inch LCD touch  screen + PLC -D 15-inch LCD touch screen + PLC + imports transmitter  Siemens Stainless steel control box is -S
