General Info

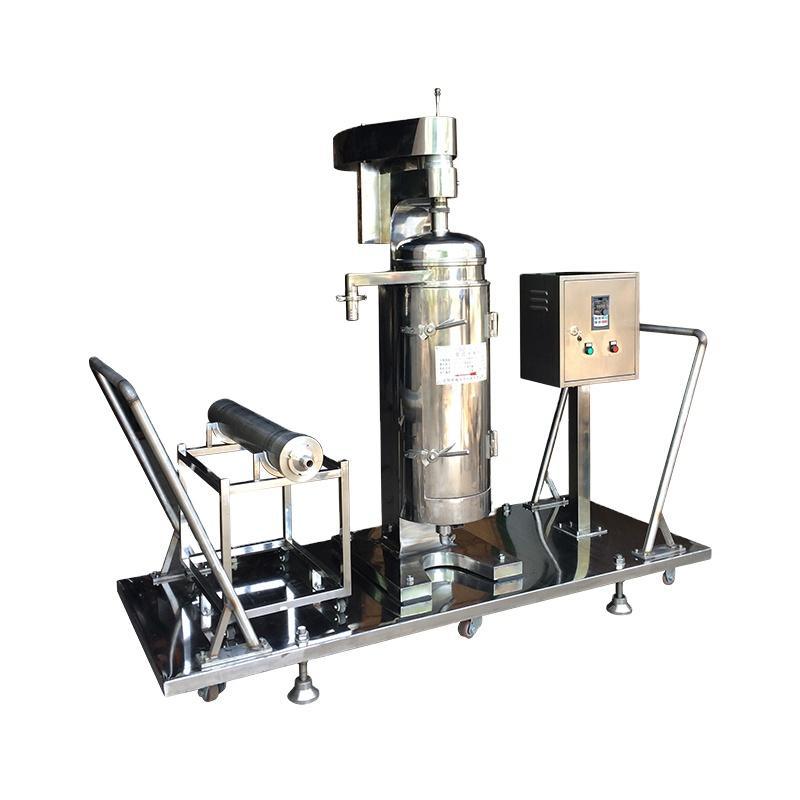

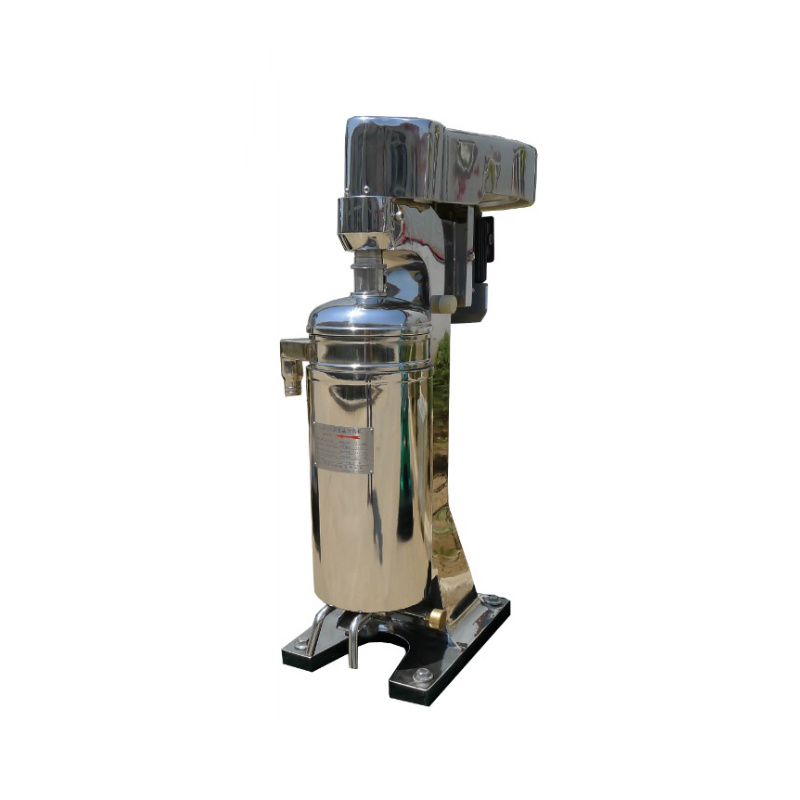

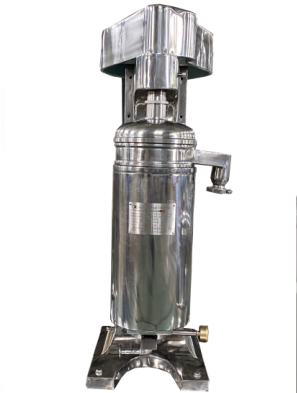

tubular centrifuge
GQ Series Tubular Separator is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, fine particles and very small differential gravity of the two phases,it is suitable for solid content lower 2% . Because tubular separator is manual discharging machine. But as it is manual discharging machine , so the capacity from 10-500 L per hour . Depend on the Situation of your material .We are not the best , but we will do our best to offer you good service and high quality machine.
Technical Parameters:
Item /Type | GQ45 | GQ75 | GQ105 | GQ125 | GQ150 | ||
Bowl | Inner Dia (mm) | 45 | 75 | 105 | 125 | 142 | |
Height(mm) | 240 | 450 | 730 | 730 | 730 | ||
Sedimentation Volume (L) | 0.4 | 2.2 | 6 | 8 | 10 | ||
Max Speed (r/min) | 10000-28000 | 20000 | 16300-19000 | 15000 | 14000 | ||
Inlet Nozzle Dia(mm) |
2/2.5/3 |
3/5 |
6/8/10 |
6/8/10 |
6/8/10 | ||
Inlet pressure | ≧0.05 Mpa | ||||||
Water Through Capacity (L/h) | 100 | 100-600 | 1200 | 1500 | 2500 | ||
Motor | Model | Single Phase | 3 phase | ||||
Power | 0.4 | 1.5 | 2.2 / 3 | 3 / 4 | 3 / 4 | ||
Dimension mm | L*W*L (mm) | 500*420*760 | 760*450*1120 | 840*500*1600 | 900*550*1600 | 1020*600*1600 | |
Weight kg | 90 kg | 300 kg | 500-550 kg | 580-630 kg | 600-660 kg | ||
Material | All contact with material made by SS304/316L | ||||||
Starting time (min) | About 2 | ||||||
Stopping time | About 10 | ||||||
